Direct-ink-write Cross-linkable Bottlebrush Block Copolymers for on-the-fly Control of Structural Color

Nov 19, 2025

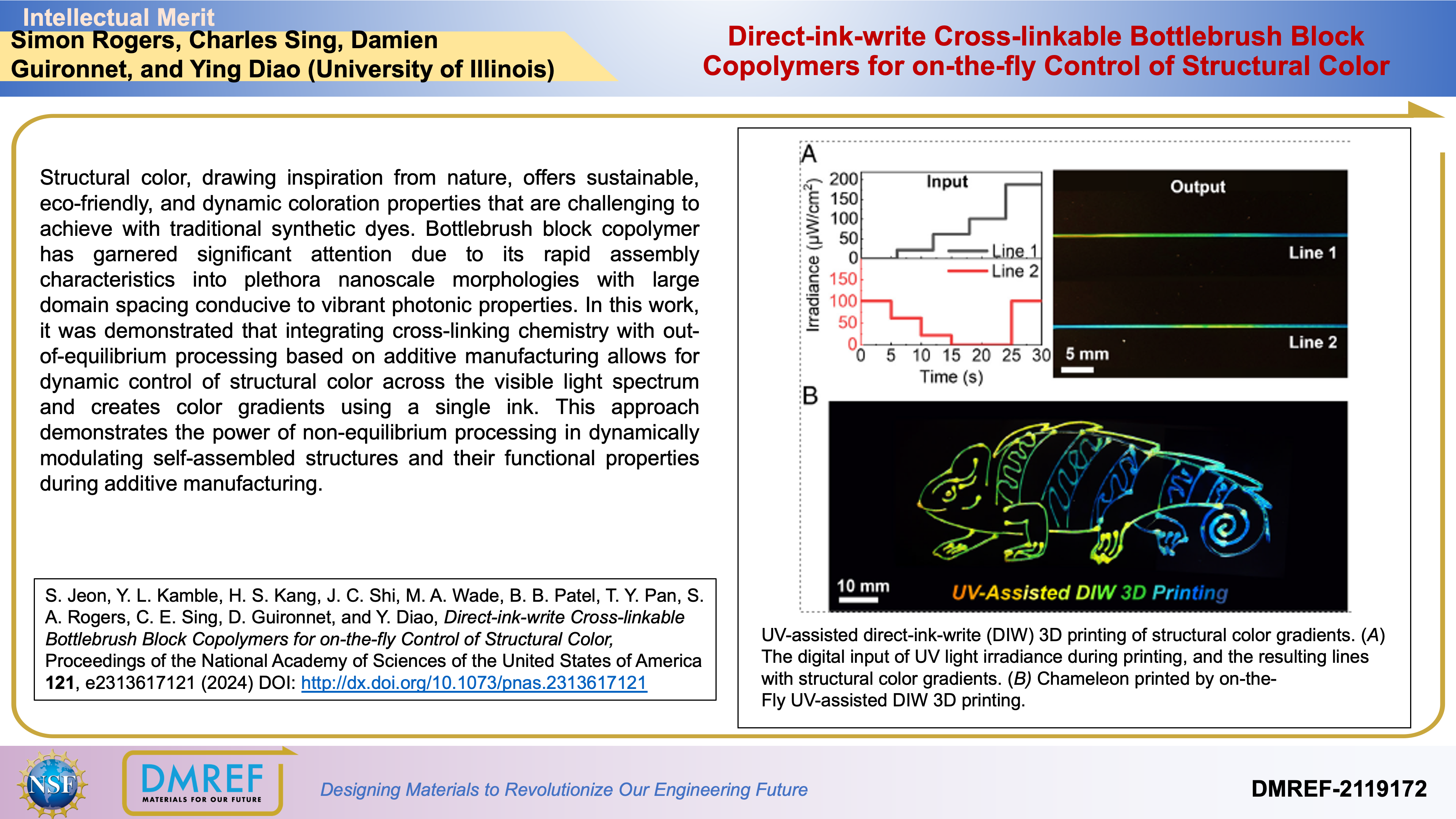

UV-assisted direct-ink-write (DIW) 3D printing of structural color gradients. (A) The digital input of UV light irradiance during printing, and the resulting lines with structural color gradients. (B) Chameleon printed by on-the-
Fly UV-assisted DIW 3D printing.
UV-assisted direct-ink-write (DIW) 3D printing of structural color gradients. (A) The digital input of UV light irradiance during printing, and the resulting lines with structural color gradients. (B) Chameleon printed by on-the- Fly UV-assisted DIW 3D printing.

Structural color, drawing inspiration from nature, offers sustainable, eco-friendly, and dynamic coloration properties that are challenging to achieve with traditional synthetic dyes. Bottlebrush block copolymer has garnered significant attention due to its rapid assembly characteristics into plethora nanoscale morphologies with large domain spacing conducive to vibrant photonic properties.

In this work, it was demonstrated that integrating cross-linking chemistry with out-of-equilibrium processing based on additive manufacturing allows for dynamic control of structural color across the visible light spectrum and creates color gradients using a single ink. This approach demonstrates the power of non-equilibrium processing in dynamically modulating self-assembled structures and their functional properties during additive manufacturing.

Authors

Simon Rogers, Charles Sing, Damien Guironnet, and Ying Diao (University of Illinois)

Additional Materials

Designing Materials to Revolutionize and Engineer our Future (DMREF)
