Thousands of Conductance Levels in Memristors Integrated on CMOS

Aug 20, 2025

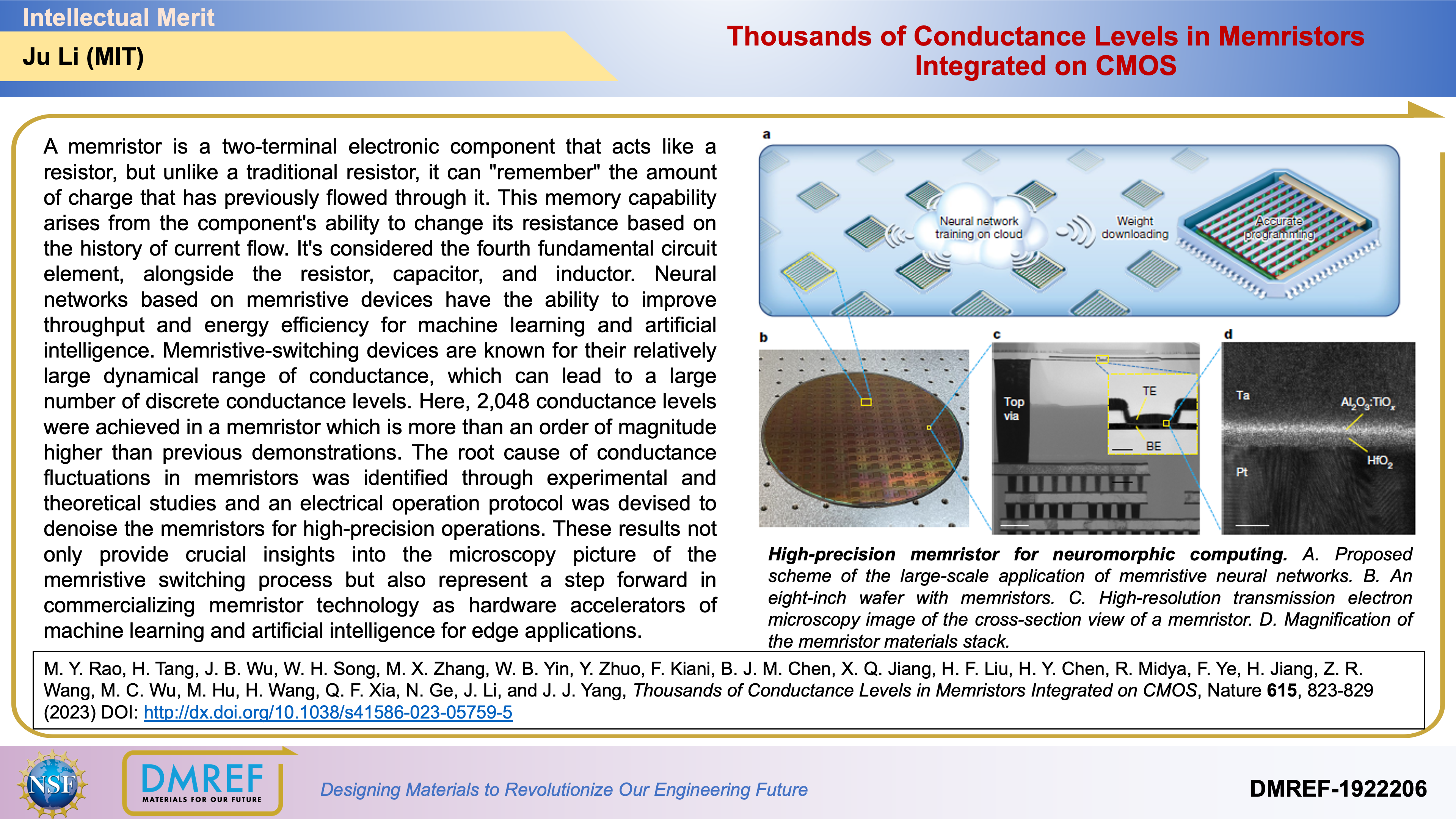

High-precision memristor for neuromorphic computing. A. Proposed scheme of the large-scale application of memristive neural networks. B. An eight-inch wafer with memristors. C. High-resolution transmission electron microscopy image of the cross-section view of a memristor. D. Magnification of the memristor materials stack.
High-precision memristor for neuromorphic computing. A. Proposed scheme of the large-scale application of memristive neural networks. B. An eight-inch wafer with memristors. C. High-resolution transmission electron microscopy image of the cross-section view of a memristor. D. Magnification of the memristor materials stack.

A memristor is a two-terminal electronic component that acts like a resistor, but unlike a traditional resistor, it can "remember" the amount of charge that has previously flowed through it. This memory capability arises from the component's ability to change its resistance based on the history of current flow. It's considered the fourth fundamental circuit element, alongside the resistor, capacitor, and inductor.

Neural networks based on memristive devices have the ability to improve throughput and energy efficiency for machine learning and artificial intelligence. Memristive-switching devices are known for their relatively large dynamical range of conductance, which can lead to a large number of discrete conductance levels.

Here, 2,048 conductance levels were achieved in a memristor which is more than an order of magnitude higher than previous demonstrations. The root cause of conductance fluctuations in memristors was identified through experimental and theoretical studies and an electrical operation protocol was devised to denoise the memristors for high-precision operations.

These results not only provide crucial insights into the microscopy picture of the memristive switching process but also represent a step forward in commercializing memristor technology as hardware accelerators of machine learning and artificial intelligence for edge applications.
